Advantages & Applications:

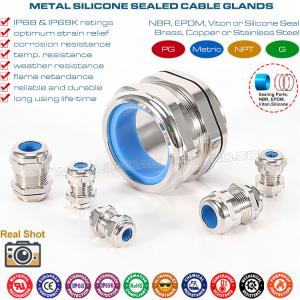

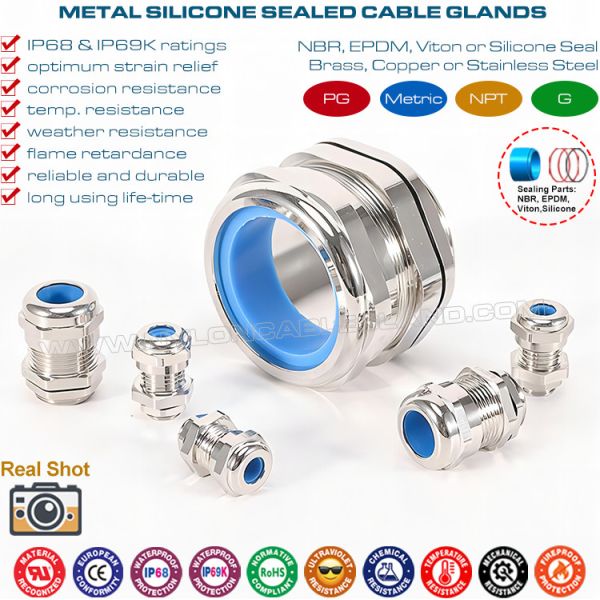

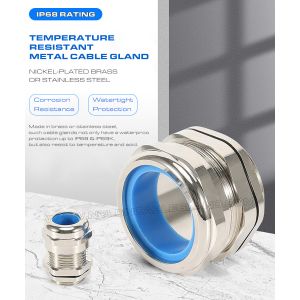

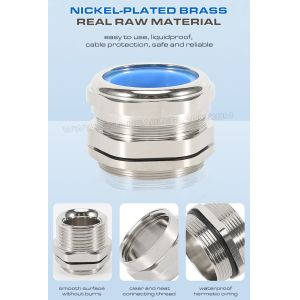

Brass PG Adjustable Cord Glands, Copper IP68 Watertight Cable Glands with Heat Proof Blue Silicone Seals & O-rings are made in non-magnetic brass or copper and are available in PG connecting thread. They are designed to permit the entry of cables into electrical equipment or component which provide earthing, bonding, insulation, sealing, retention and strain relief, and offer mechanical supports for non-armoured cables and lines.
They have the good capability of chemical resistance, corrosion resistance and temperature resistance, and they also have the ability of high tensile strength, high tenacity, good water resistance, excellent bending protection and long service time. They are highly resistant to dust, dirty, seawater, acid, alcohol, oil, fire, grease and common solvent and have a wide range of applications such as shipbuilding, electrical and electronic technologies, telecommunications, automatic control, power supplies, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.
| No. | Item | Description |
| 1 | Place of origin: | Zhejiang, China |
| 2 | Manufacturer: | Yueqing Sino Cable Gland Factory |
| 3 | Product name: | Brass PG Adjustable Cord Glands, Copper IP68 Watertight Cable Glands with Heat Proof Blue Silicone Seals & O-rings |
| 4 | Model: | PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48 |
| 5 | Material: | Brass or copper |
| 6 | Seal & O-ring: | Blue silicone rubber |
| 7 | Surface treatment: | Nickel-plated |
| 8 | Color: | Metallic |
| 9 | Features: | It offers excellent IP68 waterproof protection against the ingress of dirt, water and other liquids. Anti-oxidation, resistance to weather, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc. |
| 10 | Certifications: | CE, ROHS, REACH, IP68 |
| 11 | Protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| 12 | Thread: | According to DIN 40430 |
| 13 | Temperatures: | Normal use: -20℃ to 260℃. |
| 14 | Quality grade: | High quality |
| 15 | OEM services: | Yes, available |
| 16 | Supply capacity: | 500,000 unities each month |
| 17 | Prices: | Lowest prices from direct factory |
| 18 | Minimum quantity: | Yes, negotiable |
| 19 | Samples: | Free samples are available on request |
| 20 | Delivery time: | 7-10 days after confirmation of orders |
| 21 | Payment terms: | T/T, Cash, L/C |
| 22 | Delivery terms: | EXW, FCA, FOB, CIF, C&F |
| 23 | Shipping methods: | By EMS, TNT, DHL, UPS or FEDEX) |
| By air (Shanghai or Ningbo) | ||
| By sea (Shanghai or Ningbo) | ||
| 24 | Export packaging: | 100 unities per bag (bag + neutral label or OEM label) |
| 100 unities per box (white box or OEM box) | ||
| other special packaging is also available on request |
|
|
