| Brand Name : | Sino Cable Gland Factory |
| Model Number : | NPT series |
| Certification : | CE, SGS, RoHS, IP68 |
| Price : | lowest prices from direct factory |
| Payment Terms : | T/T, L/C, Western union, Cash |
| Supply Ability : | 500,000 pieces / month |
| Delivery Time : | normally 8-12 days |
Description & Applications:

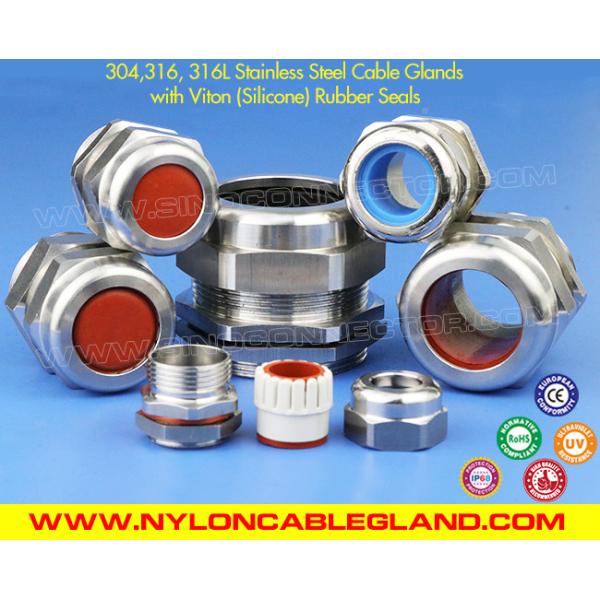

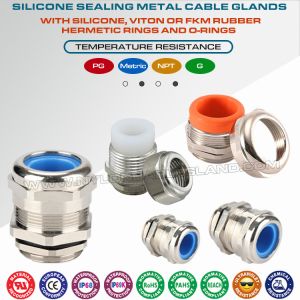

IP68 Waterproof Stainless Steel NPT Electrical Cable Glands with Silicone (Viton, FKM) Sealing Rings are made in non-magnetic stainless steel material type AISI304, AISI316 or AISI 316L and are available in NPT tapered thread. They are designed to permit the entry of cables into electrical equipment or component which provide earthing, bonding, insulation, sealing, retention and strain relief, and offer mechanical supports for the cables.
These cable glands are chemical resistant, corrosion resistant and heat resistant, and they have also the ability of high tensile strength, high tenacity, good water resistance, excellent bending protection and long service time. They are highly resistant to dust, dirty, seawater, acid, alcohol, oil, fire, grease and common solvent and are popularly used in the applications of shipbuilding, electrical and electronic technologies, telecommunications, automatic control, power supplies, solar PV modules, Inverters, lightings, surveillance cameras, plant engineerings, machines and other harsh or corrosive environment, etc.
| No. | Item | Description |
| 1 | Place of origin: | Zhejiang, China |
| 2 | Manufacturer: | Sino Cable Gland Factory |
| 3 | Product name: | IP68 Waterproof Stainless Steel NPT Electrical Cable Glands with Silicone (Viton, FKM) Sealing Rings |
| 4 | Model: | NPT1/4", NPT3/8", NPT1/2", NPT3/4", NPT1", NPT1-1/4", NPT1-1/2", NPT2", NPT2-1/2" |
| 5 | Material: | Stainless Steel Type AISI304, AISI304L, AISI316 or AISI316L |
| 6 | Seal & O-ring: | Silicone Rubber |
| 7 | Plastic insert: | UL-Polyamide 66, 94V-2 (also available in UL94V-0) |
| 8 | Surface treatment: | Polished |
| 9 | Color: | Metallic |
| 10 | Features: | Provide excellent IP68 waterproof protection against the ingress of dirt, water and other liquids. Anti-oxidation, resistance to weather, resistance to heat and corrosion, resistance to seawater, oil, weak acid, weak alkaline, alcohol, solvents, etc. |
| 11 | Certifications: | CE, ROHS, REACH, IP68, UV |
| 12 | Protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| 13 | Thread: | According to ANSI/ASME B 1.20.1 |
| 14 | Temperatures: | Normal use: -20℃ to 260℃. |
| 15 | Quality grade: | High quality |
| 16 | OEM services: | Yes, available |
| 17 | Supply capacity: | 500,000 pieces each month |
| 18 | Prices: | Lowest prices from direct factory |
| 19 | Minimum quantity: | Yes, negotiable |
| 20 | Samples: | Free samples are available on request |
| 21 | Delivery time: | 7-10 days after confirmation of orders |
| 22 | Payment terms: | T/T, Cash, L/C |
| 23 | Delivery terms: | EXW, FCA, FOB, CIF, CNF |
| 24 | Shipping methods: | By courier (EMS, TNT, DHL, UPS or FEDEX) |
| By air (Shanghai or Ningbo) | ||
| By sea (Shanghai or Ningbo) | ||
| 25 | Export package: | 100 pieces per bag, 50 pieces per bag (bag + neutral label or OEM label) |
| 100 pieces per box, 50 pieces per box (white box or OEM box) | ||
| other special packing is also available on request |
|
