    Spiral Cable Gland / Spiral Flexible Strain Relief Connector Nylon (Polyamide) 6 PG11 IP68 for 5-10mm Cable

    Ask Lasest Price
    Brand Name : Sino Cable Gland Factory or OEM
    Model Number : SNCG-P11S-10
    Certification : CE, ROHS, REACH, HF, IP68
    Price : at very competitive prices from direct factory
    Payment Terms : T/T, L/C, Western union
    Supply Ability : 2000000 units / month
    Delivery Time : normally 5-8 days
    • Product Details
    • Company Profile

    Spiral Cable Gland / Spiral Flexible Strain Relief Connector Nylon (Polyamide) 6 PG11 IP68 for 5-10mm Cable

    Description & Application:

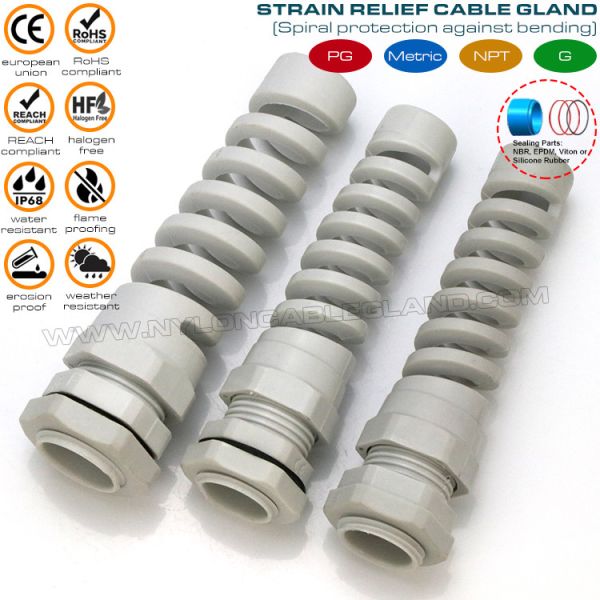

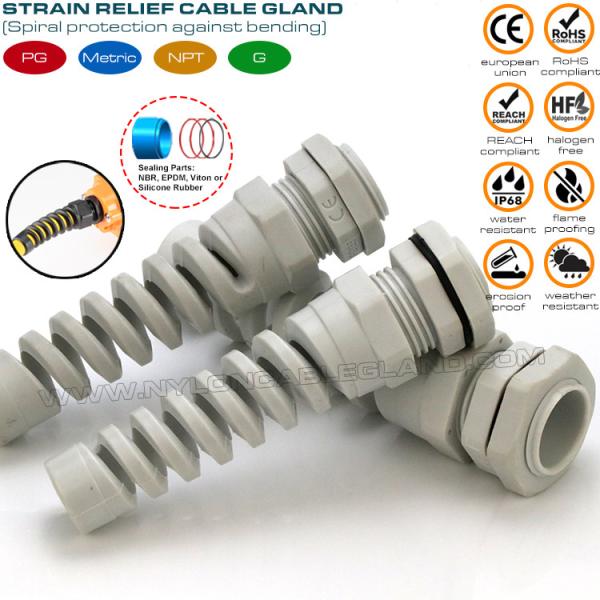

    Spiral cable gland (spiral strain relief cable gland or flexible strain relief connector) is designed with an additional spiral flexible protector, and offers a maximum cable protection against excessive bending at the bending point to reduce the risk of break to avoid electric leakage. It is made from UL-certified nylon 6 (polyamide 6) material and is available in color grey or black & sizes from PG7~PG21.
    With the features of strong tensile strength, good security and stability, high sealing & anti-bending performance, such spiral strain relief cable glands are ideal for dynamic applications and are widely applied for connecting and fastening cables or wires to provide effective protection against dust, water, oil, weak acid, alkaline, alcohol, solvents in the fields of electrical and electronic technologies, moving machines, telecommunications, network communication, automatic control, power supplies, switches, motors, distribution boxes, solar PV modules, Inverters, lightings, displays, traffics, signals, surveillance cameras, plant engineerings, installations, meters and instruments, etc.
    Information:
    Brand name:Factory or OEM
    Place of origin:Zhejiang, China
    Product name:Spiral Cable Gland / Spiral Flexible Strain Relief Connector Nylon (Polyamide) 6 PG11 IP68 for 5-10mm Cable
    Size:

    PG11 (5-10mm)

    Materials:UL-certified polyamide 6, flammability V-2 for plastic parts
    EPDM rubber for seal rings
    Colors:Grey RAL7035 or black RAL9005
    Advantages:Exquisite workmanship and beautiful appearance, unique design of claws and seals can provide strong bend relief protection
    Certifications:CE, ROHS, REACH, HF, IP68
    Protection:IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
    Thread length:Short thread or long thread
    Thread standard:

    According to Germany standard DIN 40430

    Operation temp.:

    Static:-40℃ to100℃, short-term:120℃.

    Dynamic:-20℃ to 80℃, short-term:100 ℃

    Quality grade:

    8-12 years of service life for indoor applications

    at least 5 years of service life for outdoor applications

    OEM service:Yes, available
    Supply capability:2,000,000 pieces per month
    Minimum quantity:1000 pieces
    Samples available:Free samples are available upon request
    Delivery time:Normally 5-7 days after confirmation of orders
    Payment terms:T/T in advance, Western Union, L/C at sight
    Shipment terms:EMS / TNT / DHL / UPS / FEDEX / By sea / By air or as required
    Export packing:

    100 pieces per bag, 100 pieces per box,

    special packing can be customized as requested
